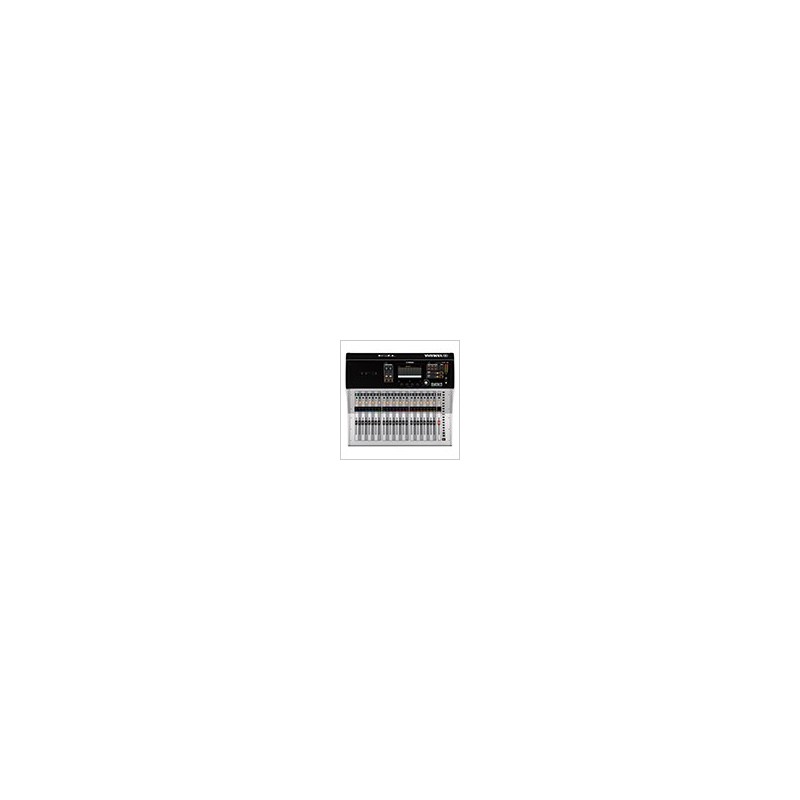

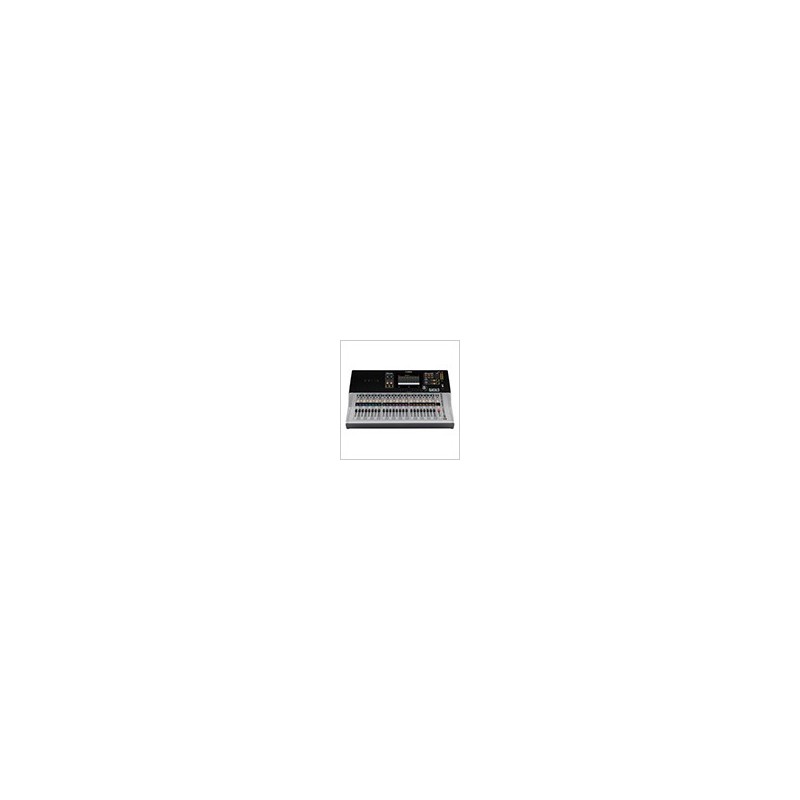

TF3 Yamaha - Console numérique - 25 faders motorisés/ 48 canaux au mixage/ 20 Aux



Référence: TF3

Un grand nombre d'entrée et un contrôle simple en font une console adaptée à un grand nombre d'applications.

Plus de détails

2 650,00 € HT

En savoir plus

  • 25 faders motorisés (24 pour les tranches d'entrées + 1 master)
  • 48 canaux au mixage (40 mono + 2 stéréo + 2 retours d'effets)
  • 20 Aux (8 mono + 6 stéréo) + bus stéréo + bus Sub
  • 8 groupes de DCA avec fonction Roll-out

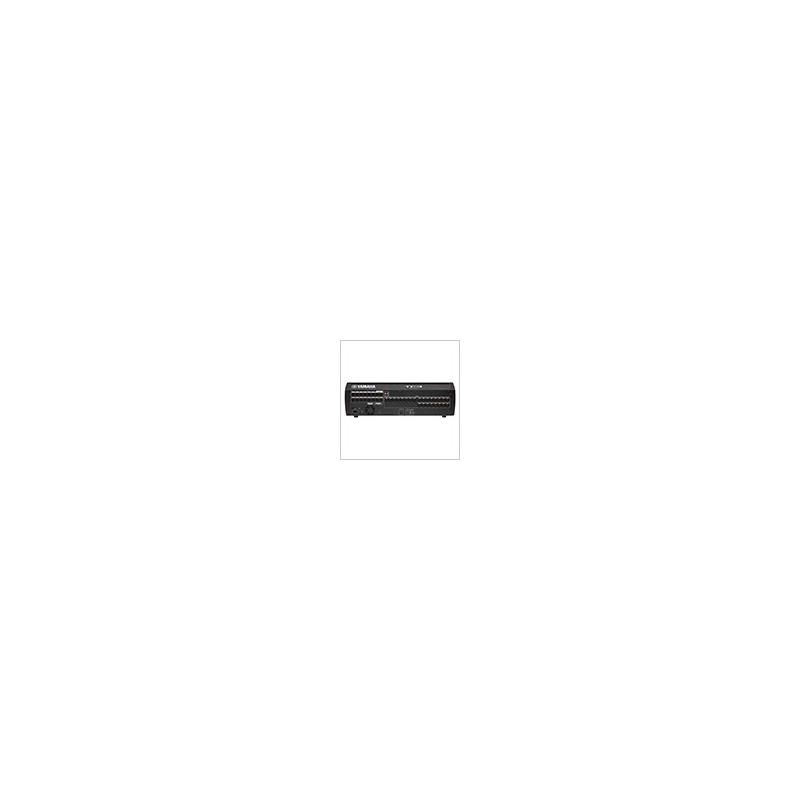

  • 24 entrées analogiques micro/ligne XLR/TRS combo + 2 entrées analogiques RCA stéréo ligne
  • 16 sorties analogiques XLR
  • 34 x 34 canaux record/playback via USB 2.0 + 2 x 2 via a USB storage device
  • 8 Effects and 10 GEQ
  • 1 slot d'extension pour carte audio NY64-D (option)

<iframe width="740" height="416" src="https://www.youtube.com/embed/LRBjefV5koU" frameborder="0" allowfullscreen></iframe>

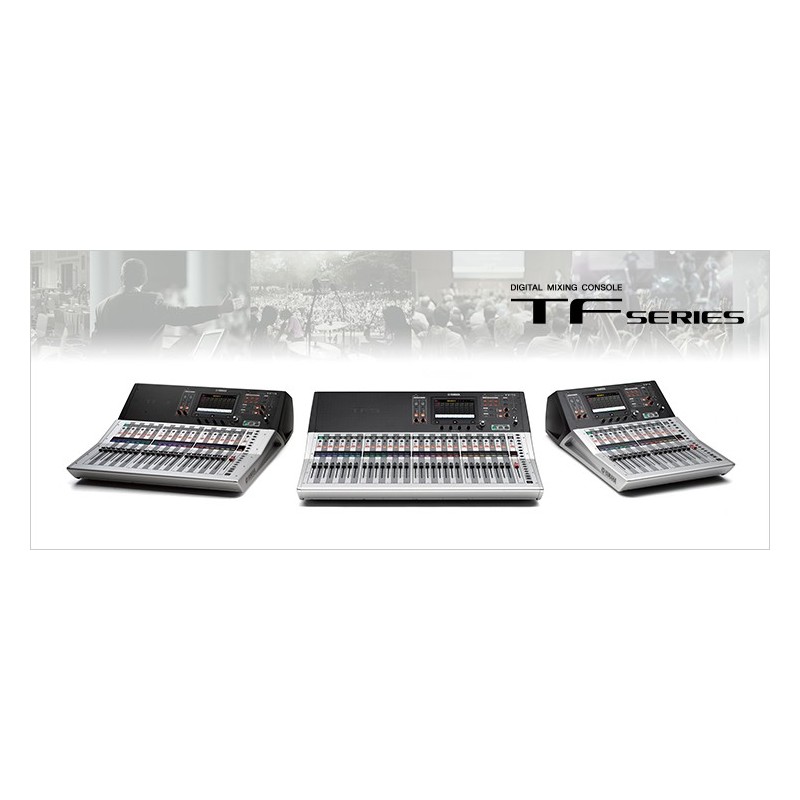

La gamme TF: TF5, TF3, TF1

OutlineTF5TF3TF1
Fader Configuration32 + 1 (Master)24 + 1 (Master)16 + 1 (Master)
Mixing CapacityInput Channels48 (40 mono + 2 stereo + 2 return)48 (40 mono + 2 stereo + 2 return)40 (32 mono + 2 stereo + 2 return)
Aux Buses20 (8 mono + 6 stereo)20 (8 mono + 6 stereo)20 (8 mono + 6 stereo)
Stereo Buses111
Sub Buses111
Input channel functions8 DCA Groups8 DCA Groups8 DCA Groups
I/OInputs32 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin)24 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin)16 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin)
Outputs16 (XLR)16 (XLR)16 (XLR)
Expansion slots111
On-board processorsDSP8 Effects + 10 GEQ8 Effects + 10 GEQ8 Effects + 10 GEQ
General specificationsTF5TF3TF1
Sampling frequency rateInternal48 kHz48 kHz-
Signal delayLess than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHzLess than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHzLess than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz
Fader100 mm motorized, Resolution = 10-bit, +10 dB to –138 dB, –∞ dB all faders100 mm motorized, Resolution = 10-bit, +10 dB to –138 dB, –∞ dB all faders100 mm motorized, Resolution = 10-bit, +10 dB to –138 dB, –∞ dB all faders
Total harmonic distortionLess than 0.05% 20 Hz–20 kHz @+4 dBu into 600 , INPUT to OMNI OUT, Input Gain=Min. (Measured with a –18 dB/octave filter@80 kHz)Less than 0.05% 20 Hz–20 kHz @+4 dBu into 600 , INPUT to OMNI OUT, Input Gain=Min. (Measured with a –18 dB/octave filter@80 kHz)Less than 0.05% 20 Hz–20 kHz @+4 dBu into 600 , INPUT to OMNI OUT, Input Gain=Min. (Measured with a –18 dB/octave filter@80 kHz)
Frequency response+0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT+0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT+0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT
Dynamic range110 dB typ., DA Converter, 107 dB typ., INPUT to OMNI OUT, Input Gain=Min.110 dB typ., DA Converter, 107 dB typ., INPUT to OMNI OUT, Input Gain=Min.110 dB typ., DA Converter, 107 dB typ., INPUT to OMNI OUT, Input Gain=Min.
Hum & noise levelEquivalent input noise–128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter)–128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter)–128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter)
Residual output noise–85 dBu, ST master off (Measured with an A-Weight filter)–85 dBu, ST master off (Measured with an A-Weight filter)–85 dBu, ST master off (Measured with an A-Weight filter)
Crosstalk–100 dB (Measured with a –30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min.–100 dB (Measured with a –30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min.–100 dB (Measured with a –30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min.
Power requirements100–240 V 50/60 Hz100–240 V 50/60 Hz100–240 V 50/60 Hz
Power consumption120 W110 W100 W
DimensionsW866 mm (34.1in)716 mm (28.2in)510 mm (20.1in)
H225 mm (8.9in)225 mm (8.9in)225 mm (8.9in)
D599 mm (23.6in)599 mm (23.6in)599 mm (23.6in)
Net weight20.0 kg (44.1lb)17.0 kg (37.5lb)13.5 kg (29.8lb)
AccessoriesQuick Guide, Power Cord, CUBASE AI download informationQuick Guide, Power Cord, CUBASE AI download informationQuick Guide, Power Cord, CUBASE AI download information
OptionsExpansion Card, Foot Switch (FC5)Expansion Card, Foot Switch (FC5)Rack-mount Kit RK5014, Expansion Card, Foot Switch (FC5)
OthersOperating temperature range: 0–40 °C, Storage temperature range: -20–60 °COperating temperature range: 0–40 °C, Storage temperature range: -20–60 °COperating temperature range: 0–40 °C, Storage temperature range: -20–60 °C
